12F Armored Cable

Small size / Capacity 12 fibers

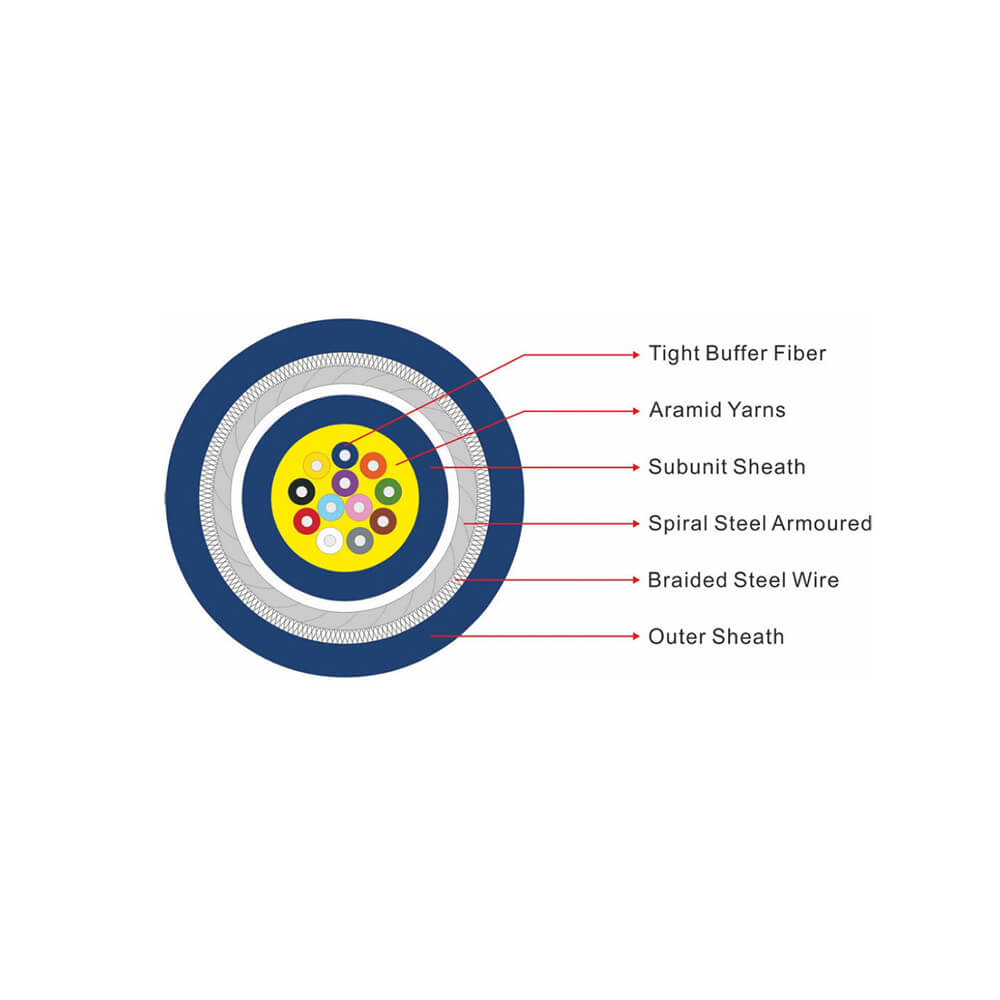

Small size flexible armored cable for 12 fiber count maximum, light, easy to carry and install; spiral metal armor and braided armor for option; PVC, LSZH, TPU jacket all available to customize.

GET A QUOTE

DataSheet Download

Cable Mechanical Characteristics

Fiber Count	Tight Buffer	Cable OD (mm)	Cable G.W. (kg/km)	Tensile Resistance (N) Long/Short Term	Crush Resistance（N/100mm） Long/Short Term	Bending Radius (mm) Static/Dynamic
2	0.6	5.0	42	300/750	200/1000	20D/10D
4	0.6	6.0	65	300/750	200/1000	20D/10D
6	0.6	6.0	66	300/750	200/1000	20D/10D
8	0.6	6.0	68	300/750	200/1000	20D/10D
12	0.6	6.0	70	300/750	200/1000	20D/10D

Environment Performance

Operation Temperature (°C)	-20 ~ +60
Storage Temperature (°C)	-20 ~ +60

Fiber Parameter

Single Mode Fiber
			Unit	G.652D	G657A1	G657A2
Cladding Diameter			μm	125±1.0	125±0.7	125±0.7
Cladding non-circularity			%	≤ 1.0	≤ 0.7	≤ 0.7
Core-cladding Concentricity Error			μm	≤ 0.6	≤ 0.5	≤ 0.5
Coating Diameter			μm	245±7	245±5	245±5
Coating non-circularity			%	≤ 6.0	≤ 6.0	≤ 6.0
Cladding-coating concentricity error			μm	≤ 12.0	≤ 12.0	≤ 12.0
Cable Cutoff Wavelength (λcc)			nm	≤ 1260	≤ 1260	≤ 1260
Mode Field Diameter		1310nm	μm	≤ 0.4	≤ 0.4	≤ 0.4
Mode Field Diameter		1550nm	μm	≤ 0.3	≤ 0.3	≤ 0.3
Multimode Fiber
		Unit	62.5/125	50/125	OM3	OM4
Core Diameter		μm	62.5±2.5	50±2.5	50±2.5	50±2.5
Cladding Diameter		μm	125±1.0	125±1.0	125±1.0	125±1.0
Core Non-circularity		%	≤ 5.0	≤ 5.0	≤ 5.0	≤ 5.0
Cladding Non-circularity		%	≤ 1.0	≤ 1.0	≤ 1.0	≤ 1.0
Core-cladding Concentricity Error		μm	≤ 1.5	≤ 1.5	≤ 1.0	≤ 1.0
Coating Diameter		μm	245±7	245±7	245±7	245±7
Coating Non-circularity		%	≤ 6.0	≤ 6.0	≤ 6.0	≤ 6.0
Cladding-coating Concentricity Error		μm	≤ 12.0	≤ 12.0	≤ 12.0	≤ 12.0
OFL Bandwidth	850nm	MHz·km	≥ 160	≥ 500	≥ 1500	≥ 3500
OFL Bandwidth	1300nm	MHz·km	≥ 500	≥ 500	≥ 500	≥ 500
