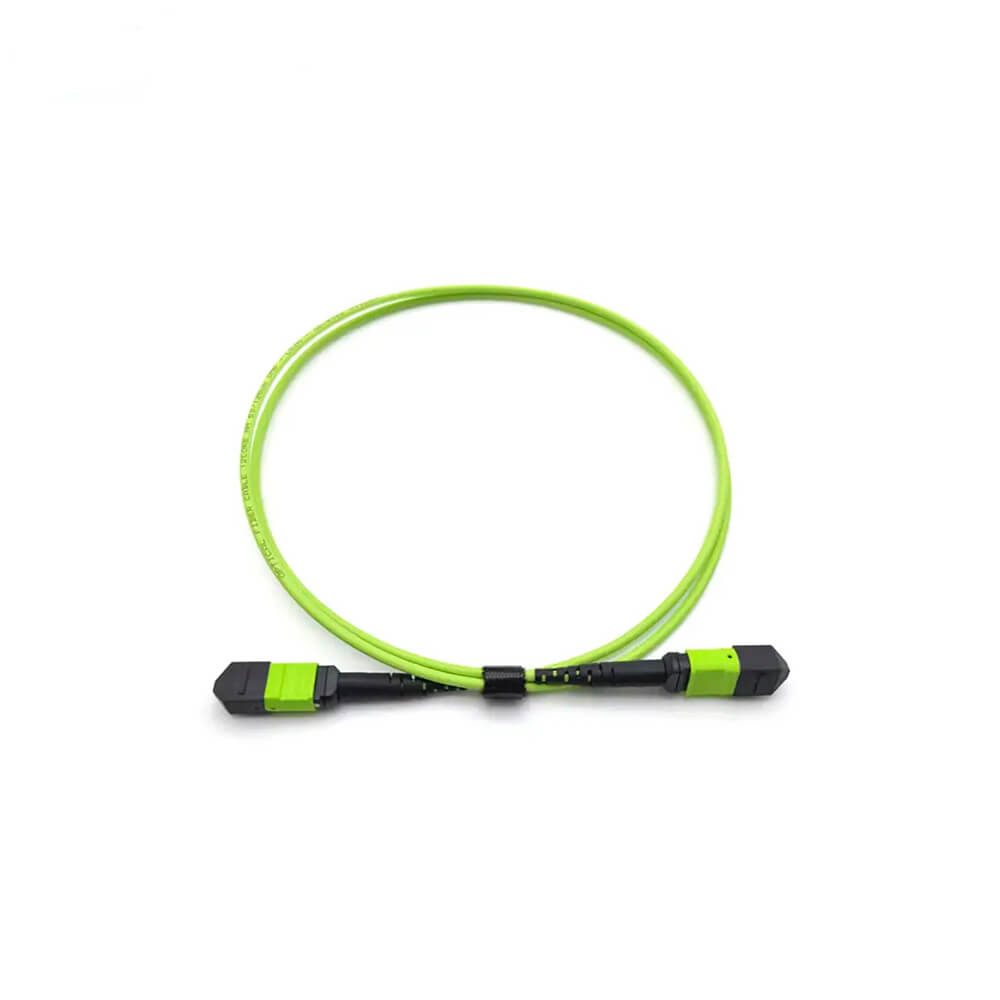

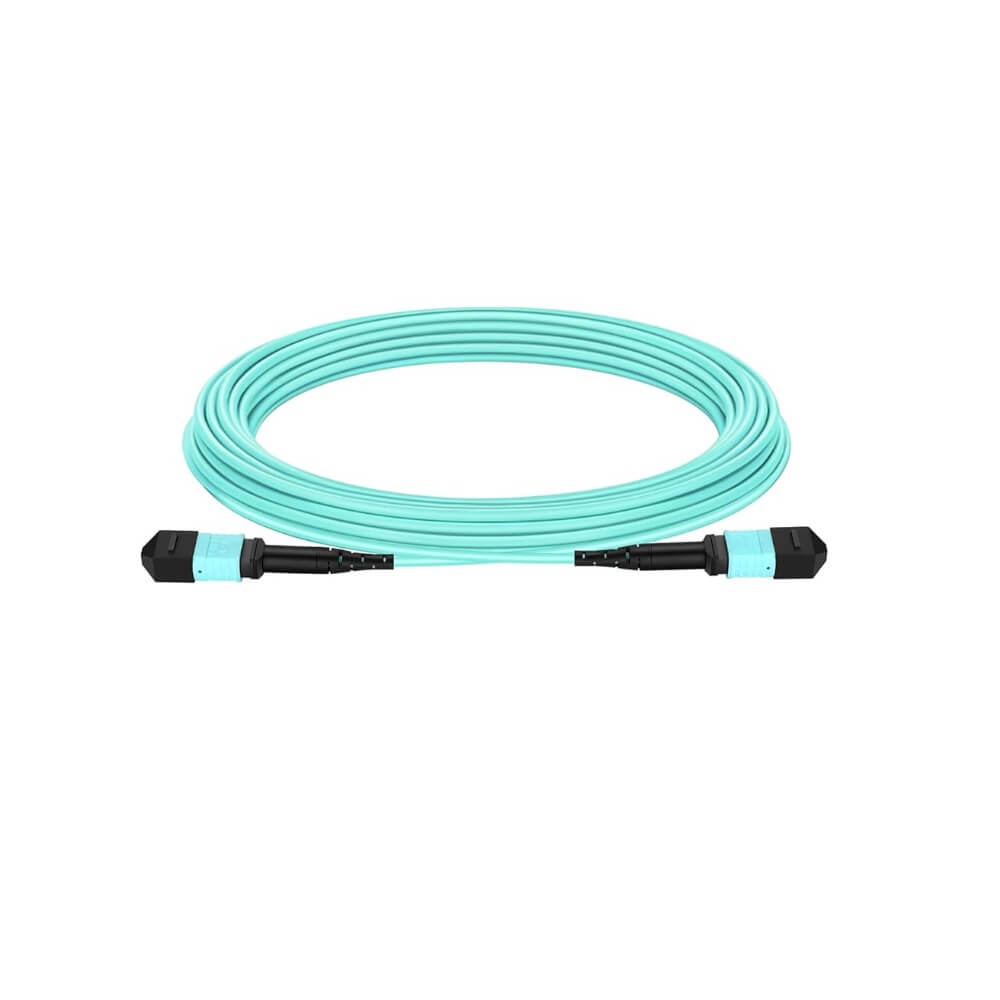

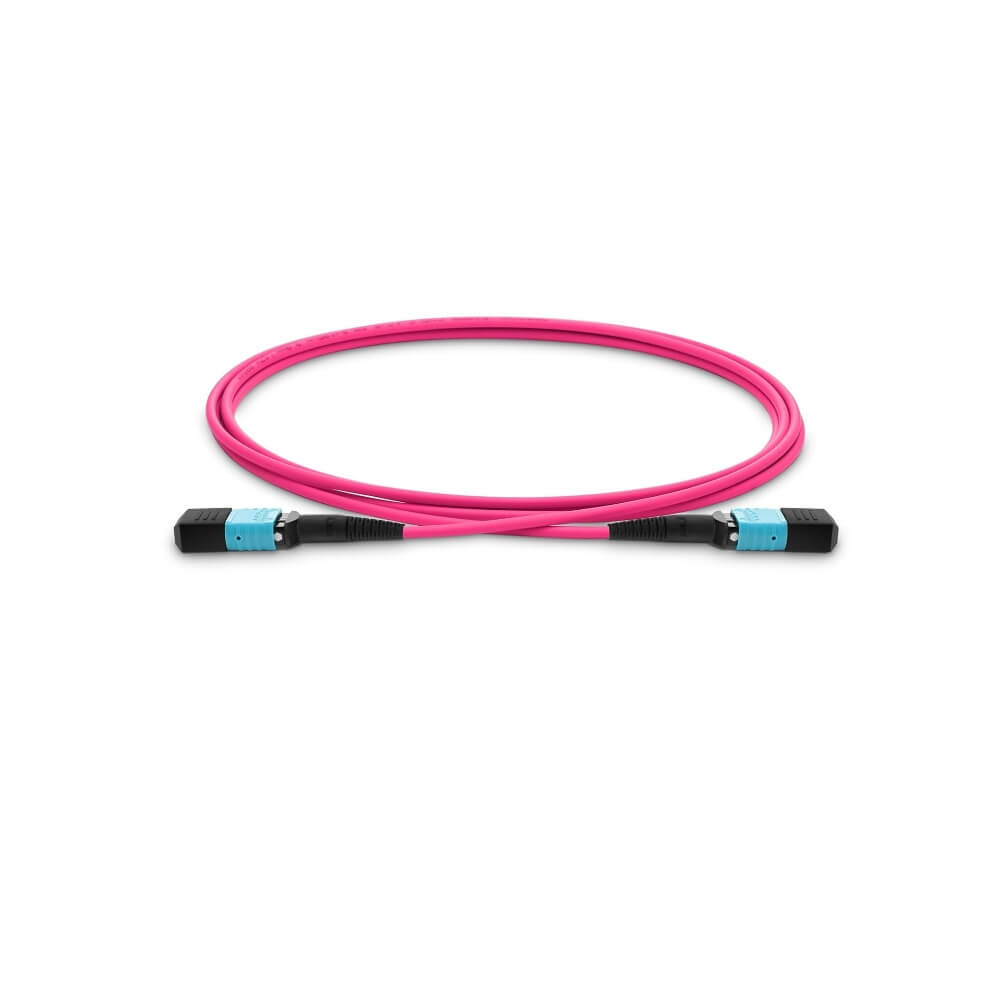

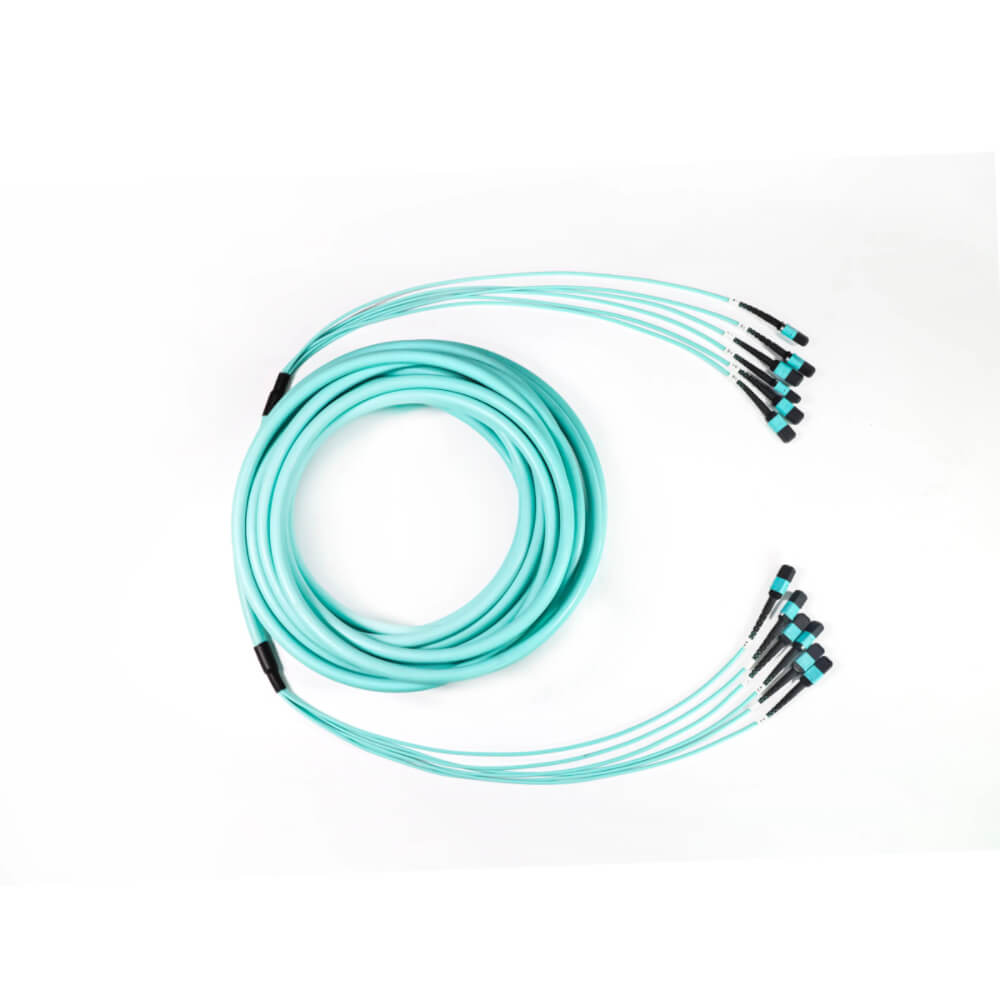

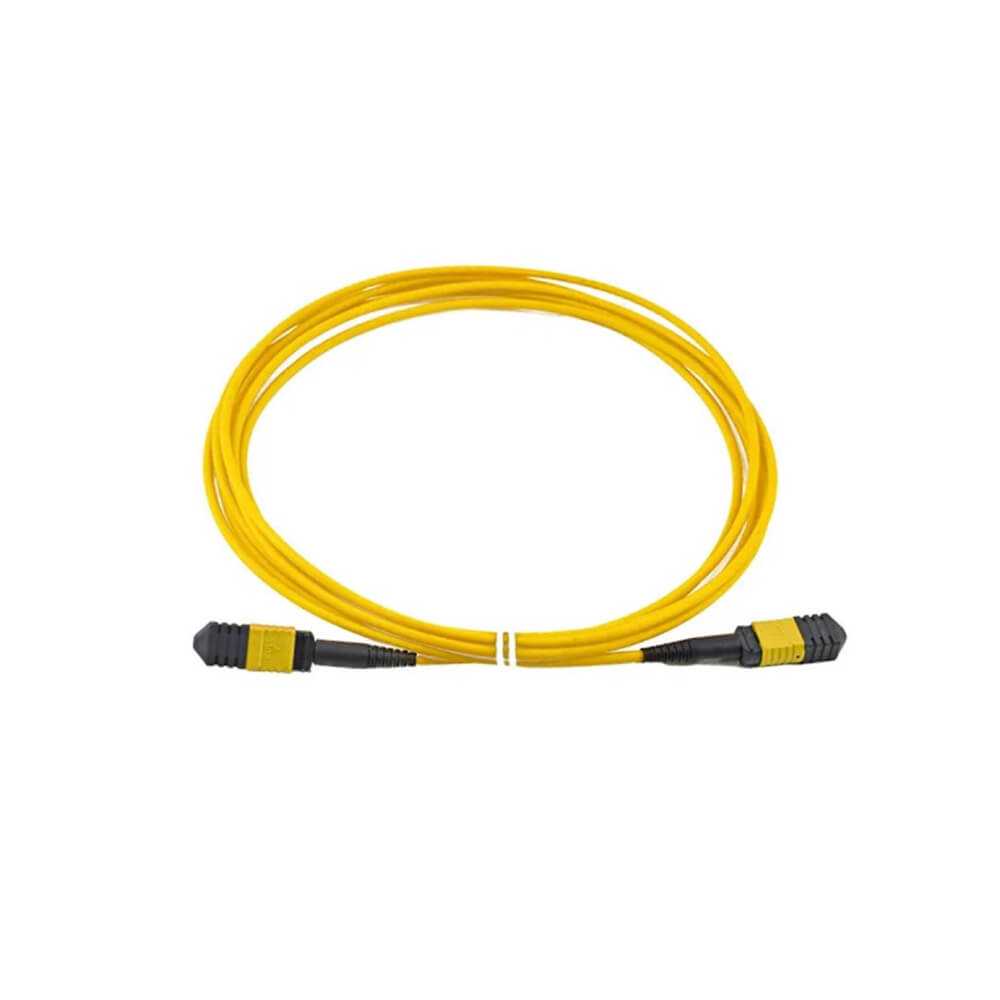

MTP® MPO Trunk Cable

MPO and MTP® trunk cable can be produced and supplied by FTTMAX, with many branded connectors US Conec, SENKO, NISSIN, SANWA, and cable 8 fibers, 12 fibers, 24 fibers or 36 fibers in single one connector, for high density solution or IDC upgrade.

GET A QUOTE

DataSheet Download

Product Highlight

Original SENKO MPO, NISSIN MPO, US Conec MTP® connectors
Bend insensitive fiber
Flame-retardant Jacket
100% optical testing before delivery
MTP® and MPO are compatible to installed together

Standard Compliance

Compliant with TIA/EIA
Compliant with RoHS
Compliant with latest IEC standard

Application

Data center
FTTX
40G/100G optical transceiver link

General Specification

Item	Parameter
Fiber Count	4 - 144 fibers
Fiber Mode	Single mode: 9/125um, OS2 G652D G657 Multimode: 50/125um, OM2, OM3, OM4, OM5, 62.5/125um, OM1
Fiber Grade	Single mode: OS2, ITU-T G.652D., ITU-T G.657 Multimode: ITU-T G.651, OM2, OM3, OM4, OM5, OM1
Cable Diameter	3.0mm, 3.5mm, 2.5*5.0mm
Flame Retardant	Riser (OFNR), Plenum (OFNP)
Jacket Material	PVC, LSZH, TPU
Jacket Color	OS2 G657: Yellow OM1 Orange, OM2 Orange, OM3 Aqua, OM4 Magenta, OM5 Lime Green
Connector Type	MPO, MPO PRO, MTP®
Polarity	Type A, Type B, Type C
Connecor Gender	Male, Female
Connector Color	Yellow, Green, Aqua, Magenta
Operating Temperature	-20 °C ~ +70 °C
Storage Temperature	-40 °C ~ +85 °C

Optical Performance

Item		Single Mode	Multimode
IL (dB)	Standard Loss	≤0.75 (Typical≤0.40)	≤0.60 (Typical≤0.35)
IL (dB)	Low Loss	≤0.35 (Typical≤0.25)	≤0.35 (Typical≤0.20)
RL (dB)		PC ≥50, APC ≥60	PC ≥20, APC ≥40

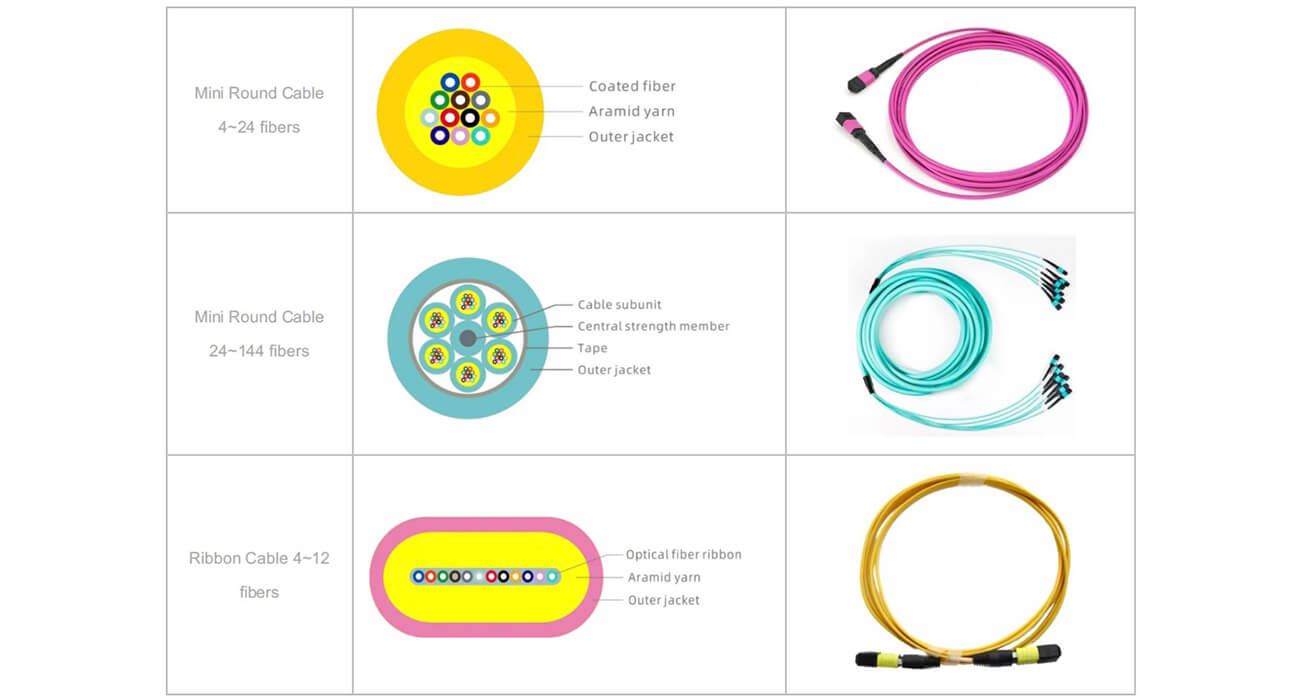

Typical Cable Options
